Winch Rating: 12000 Pound

Recommended Use: Vehicle Recovery

Operation Type: Electric

Mount Type: Fixed Mount

Voltage: 12 Volt

Free Spooling: Yes

Line Length (FT): 80 Feet

Line Material: Steel

Remote Type: Wired

Universality: Fully Universal

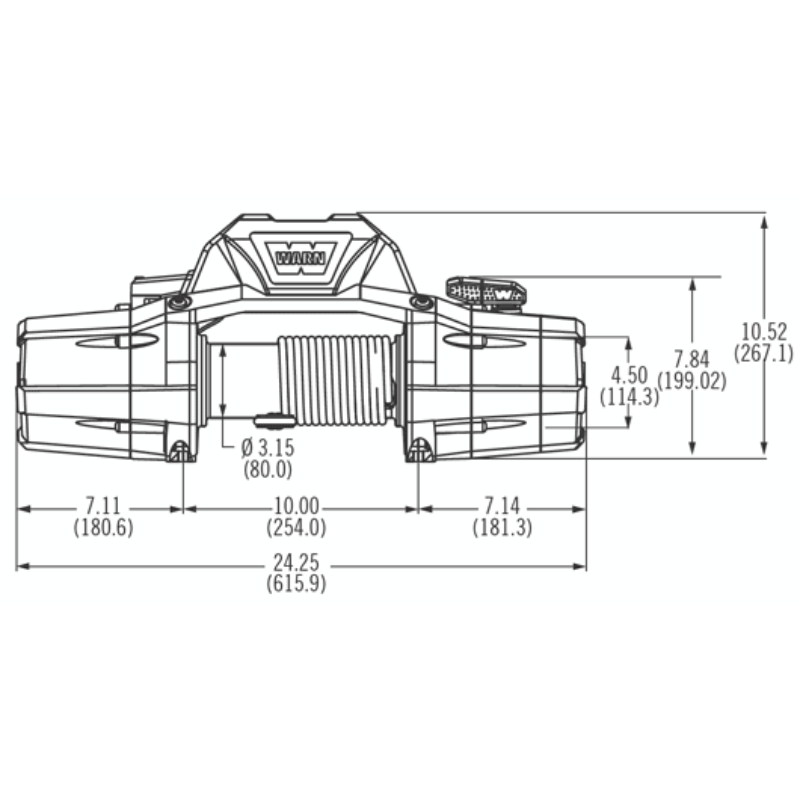

Mounting Pattern Size: 10 Inch Length X 4-1/2 Inch Width

Brake Type: Automatic Cone

Max Amp Draw: 469 Amp Draw At 12000 Pound

Gear Reduction Ratio: 261:1

Includes Mounting Hardware: No

Thermal Shutoff: No

Color: Black

Fairlead Type: Roller

Line Speed At Max Pull: 3.3 Feet Per Minute At 12000 Pound

Electrical Control Type: Contactors

Motor Type: Series Wound

Drive Gear Type: Planetary

Line Diameter (IN): 3/8 Inch

Mounting Hole Quantity: 4

Estimated Install Time (Hours): 2

Warn Recovery Winch 89120

The WARN ZEON 12 is the new face of winching. Bolt one on, and you'll be ready for anything. A top choice for those with heavily loaded off-road vehicles, the ZEON 12 features innovative design, increased performance and durability, steel rope, and a hefty 12,000 Pounds single line pulling capacity. The ZEON 12 is a pulling machine you can rely on to rescue you or your buddies, from nearly anything.

Features & Benefits

• Uniquely balanced 12000 pounds winch with wire rope and roller fairlead
• Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
• Gear Train And Motor Deliver Reliable Pulling Power That Is Fast, And Quieter Than Ever
• Satin Black Powder Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion, Improved Winch Sealing To Keep The Elements Out
• 12,000 Pounds (5443 Kilogram) Single Line Pulling Capacity
• Includes 80 Foot Of Durable 3/8 Inch Galvanized Steel Wire Rope
• Large Diameter Winch Drum Reduces Rope Wear, Is Light Weight, And Has An Integrated Rope Anchor For Easy Rope Installation
• Limited Lifetime Warranty

Installation Instructions
