Length: 26.25 in.

Width: 19.75 in.

Height: 8.50 in.

Weight: 103.50 lbs

Pull Rating: 8,000 - 10,500 Lbs

Rope/Cable Type: Non Synthetic

Warranty: International Warranty

Guide: Zeon Install Guide

Instruction: Zeon-10 Winch Service Instructions

Warn Steel Winch Rope 88990

Features:

• Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
• New Design Planetary Gear Train And Series Wound Motor Deliver Fast, Quiet, And Reliable Pulling Power
• Satin Black Powder Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion
• Improved Winch Sealing To Keep The Elements Out
• Large Diameter Winch Drum Reduces Rope Wear, Is Lightweight, And Has An Integrated Rope Anchor For Easy Rope Installation
• Includes 80 Foot Of 3/8 Inch Galvanized Steel Wire Rope
• 10,000 Pounds Single Line Pulling Capacity
• Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.

Descriptions:

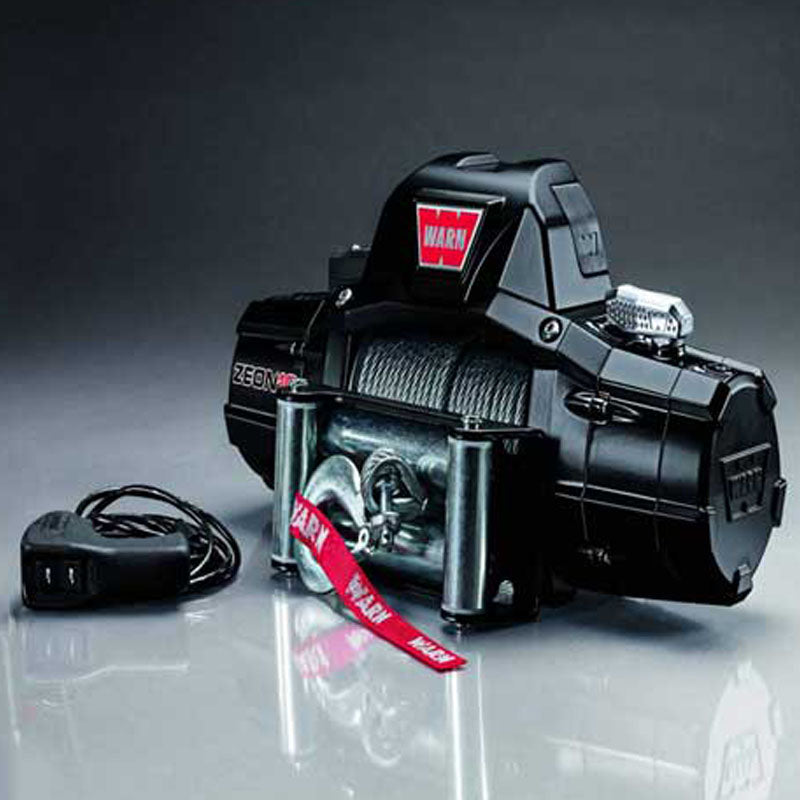

The ZEON 10, a 12-volt electric winch has a pull capacity of 10,000 pounds. It comes with 80 feet of steel rope and a roller fairlead.

The new Warn ZEON winch changes things–forever. Tough enough to tackle anything you will, with a look that is advanced, capable and strong. ZEON is a design masterpiece that defines the next generation of winches from Warn Industries. Features include a durable satin-black cast-aluminum housing, muck-busting sealing, and a convertible control pack that lets you mount the winch the way you want. Add a powerful new motor, hyper-durable finish, efficient new gear train and, well, youve got a workhorse unit you can trust for years to come.
