Winch Rating: 16500 Pound

Recommended Use: Vehicle Recovery

Operation Type: Electric

Mount Type: Fixed Mount

Voltage: 12 Volt

Free Spooling: Yes

Line Length (FT): 90 Feet

Line Material: Steel

Remote Type: Wired

Universality: Fully Universal

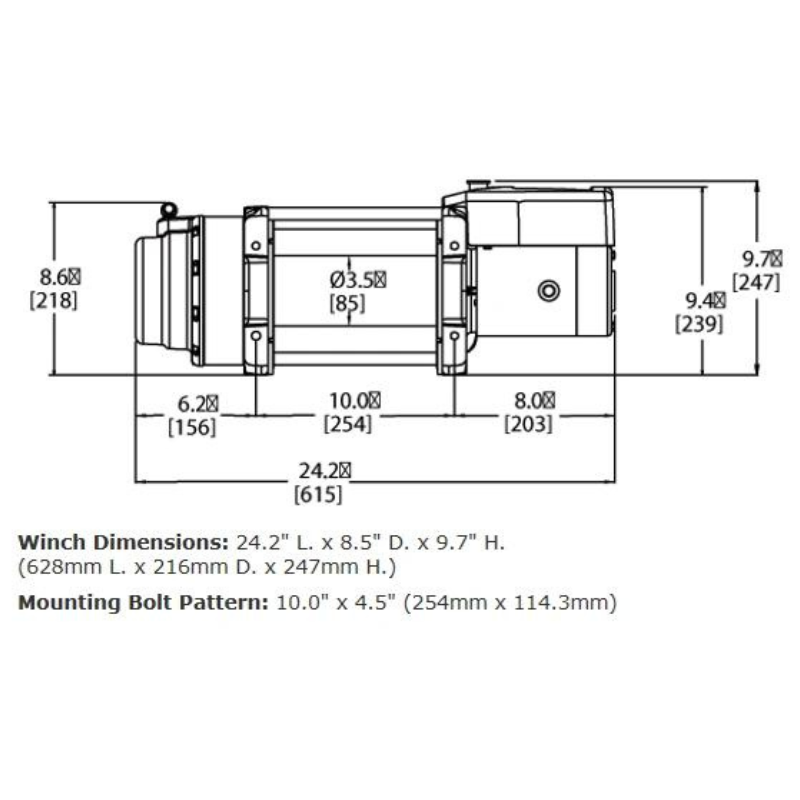

Mounting Pattern Size: 10 Inch Length X 4-1/2 Inch Width

Brake Type: Direct Drive Cone

Max Amp Draw: 507 Amp Draw At 16500 Pound

Gear Reduction Ratio: 315:1

Includes Mounting Hardware: No

Thermal Shutoff: No

Color: Gray

Motor Horsepower: 4.6 Horsepower

Fairlead Type: Roller

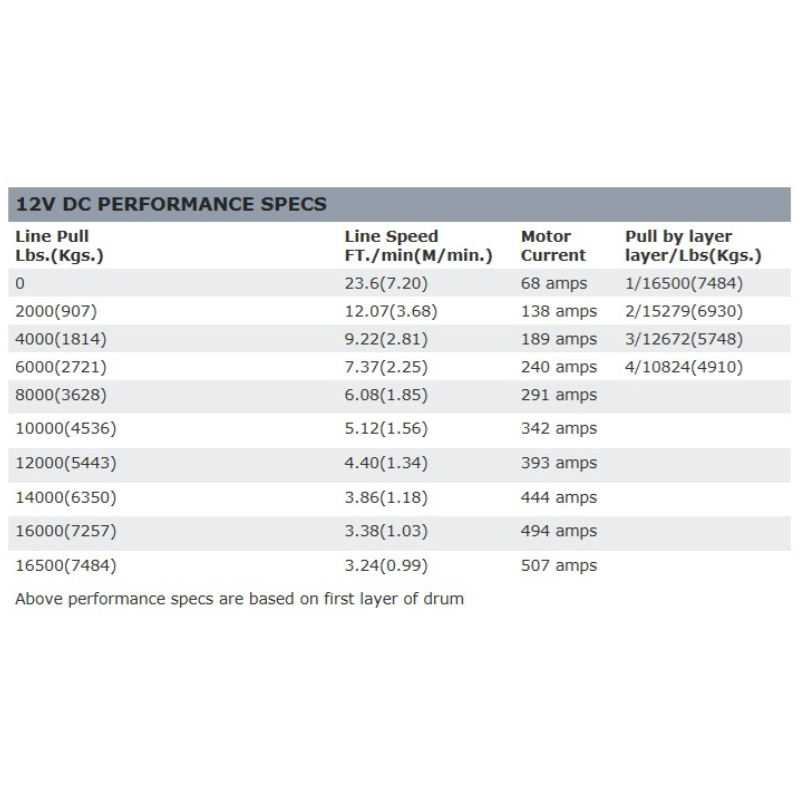

Line Speed At Max Pull: 3.2 Feet Per Minute At 16500 Pound

Electrical Control Type: Solenoid

Motor Type: Series Wound

Drive Gear Type: Planetary

Line Diameter (IN): 7/16 Inch

Mounting Hole Quantity: 4

Drum Material: Aluminum

Estimated Install Time (Hours): 2

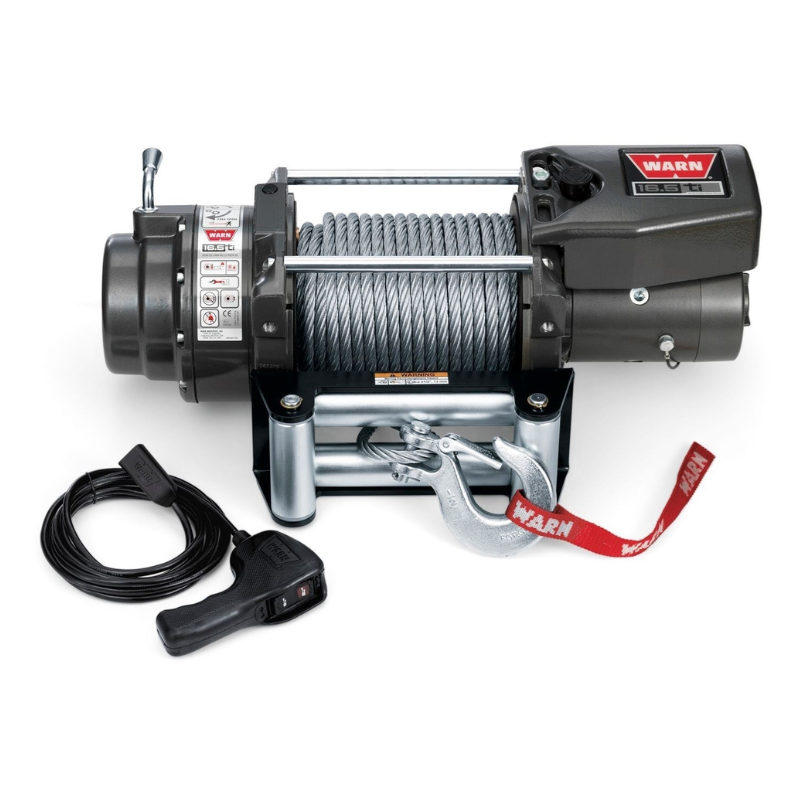

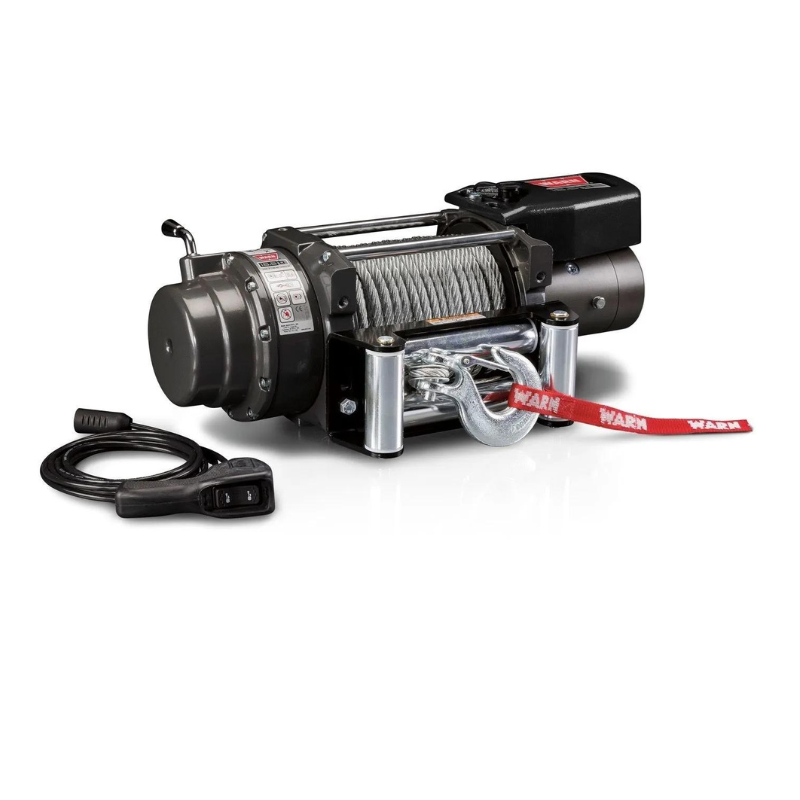

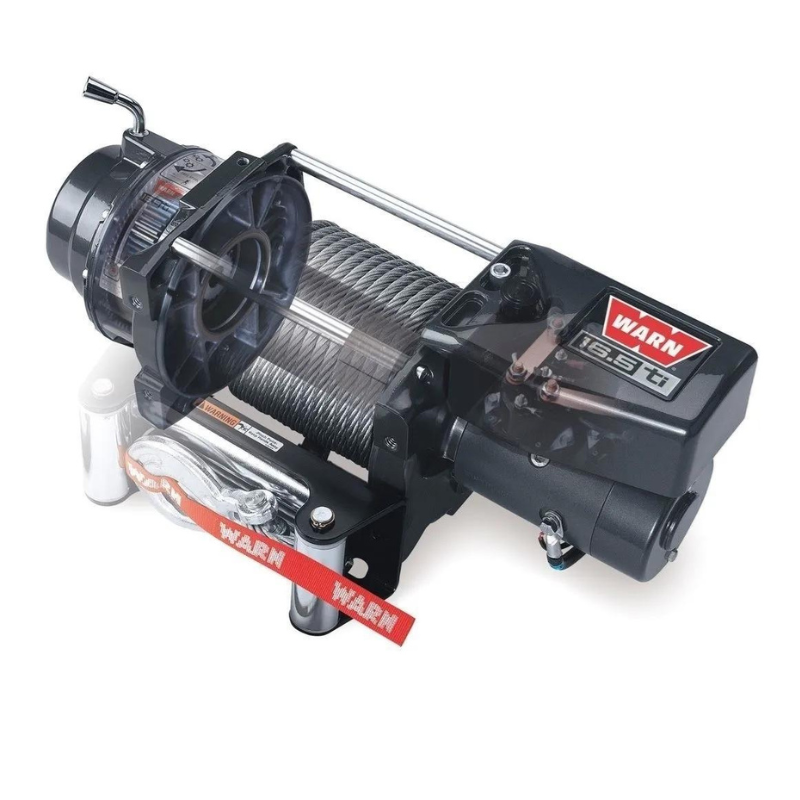

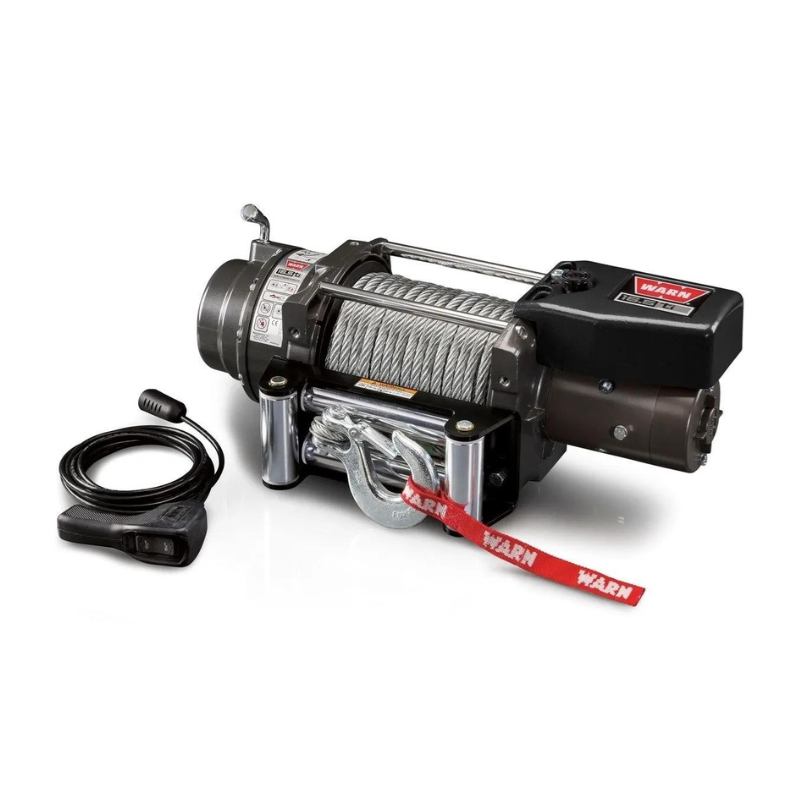

Warn Recovery Winch 68801

What do you get when you combine 16,500 Pound. Of pulling power with all the innovative features of the Warn TI series? the Warn 16.5TI thermometric Winch. The highest capacity, most technologically advanced truck Winch in the industry today. The 16.5TI features the full diagnostic ability of Warn thermometric technology, plus the extreme sealing, durability and reliability that the Warn TI Series of Winches are known for. The new, more efficient design delivers faster line speeds and lower ampere draw. It's beefed up where needed, and features a new aluminum solenoid housing cover.

Features & Benefits

• Most Powerful Winches On The Market
• Pulling Capacity Up To 16,500 Pounds
• High Strength Carrier Plates To Handle The Heavy Gear Train Stresses
• Built To Match Your Exact Requirement
• Limited Lifetime Warranty

Installation Instructions
