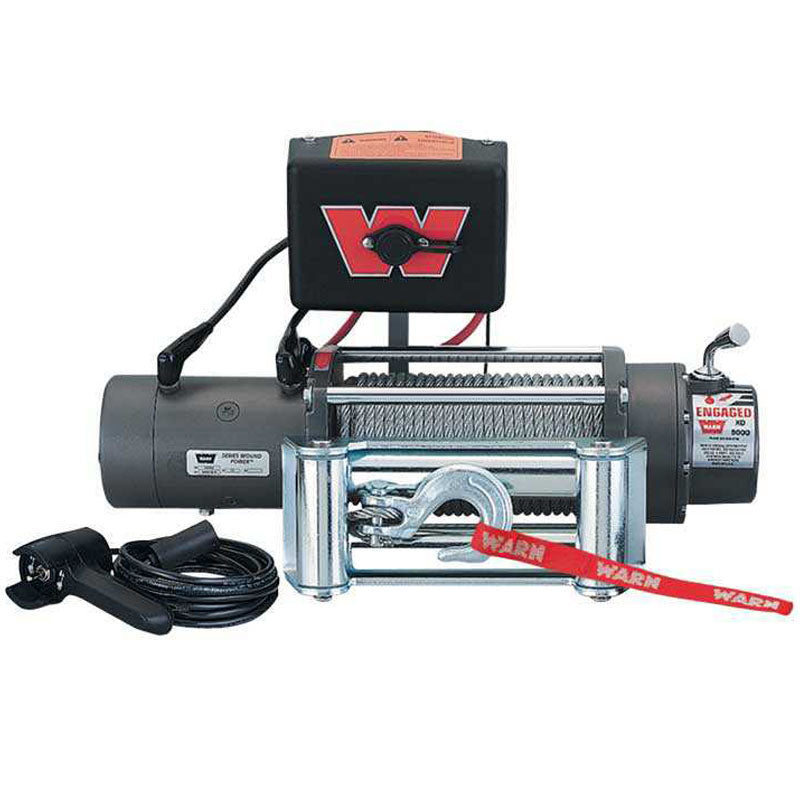

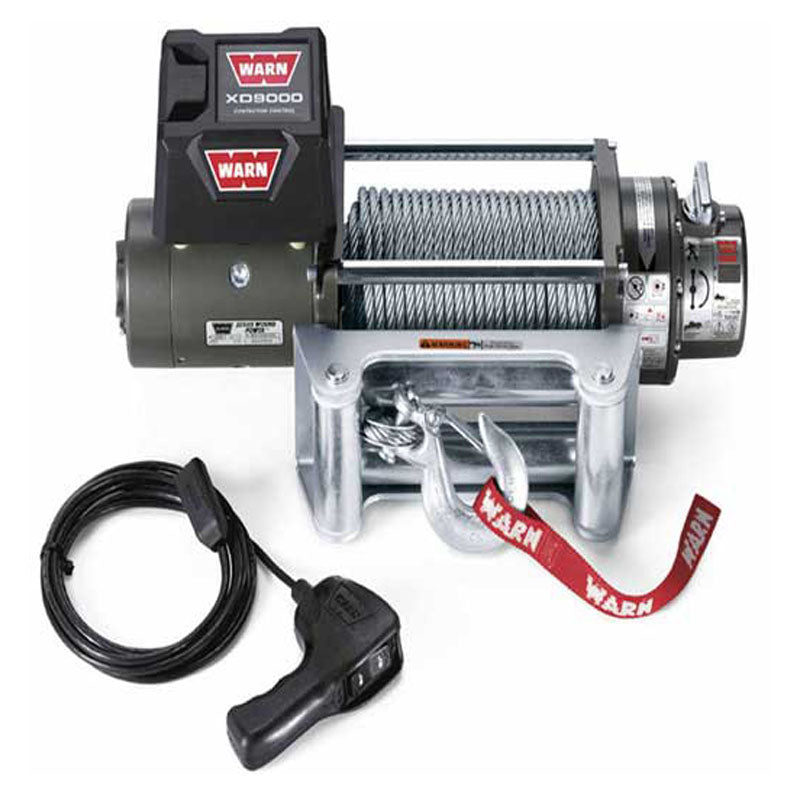

Warn 28500 12V XD9000 Winch

Warn 28500 12V XD9000 Winch

Regular price $2,399.99 USD
Regular price Sale price $2,399.99 USD
Sale Sold out
Shipping calculated at checkout.

Length: 27 in.

Width: 18.50 in.

Height: 8.50 in.

Weight: 89.45 lbs

Pull Rating: 8,000 - 10,500 Lbs

Motor: Series Wound: 12V 4.6 hp, 24V 2.5 hp

Rope/Cable Type: Non Synthetic

Gear Ratio: 156:1

Gear Train: 3-Stage Planetary

Clutch (freespooling): Sliding Ring Gear

Brake: Automatic Direct Drive Cone

Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)

Motor: Series Wound: 12V 4.6 hp, 24V 2.5 hp

CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead, safety hook and thimble.

12V DC PERFORMANCE SPECS

Line PullLbs.(Kgs.)
Line SpeedFT./min(M/min.)

MotorCurrent
Pull by layerlayer/Lbs(Kgs.)

0
38(11.6)

70 amps
1/9000(4082)

2000(910)
14.4(4.39)
180 amps

2/8190(3715)

4000(1810)
11(3.35)
255 amps
3/7500(3402)

6000(2720)
8.67(2.64)
330 amps
4/7010(3180)

8000(3630)
6.88(2.10)
415 amps

9000(4080)
6.38(1.94)
460 amps



Information: Replacement Parts List

Guide: Premium Winch Install Guide

Manual: Winch Operator's Manual

Warranty: International Warranty

Warn Winch 28500

Features:

  • Low-profile design and separate control box allows for a wide range of mounting options
  • Fastest line speed, longest rope
  • 12-volts 4.6 hp, 24-volts 2.5 hp Series Wound motor
  • Exclusive brake design provides superior control while winching
  • Durable 3-stage planetary geartrain for smooth, reliable, operation
  • Series-wound, high-speed motor provides fast line speed and strong pulls
  • Chip-resistant, powder-coated finish
  • Remote control with 12' (3.7m) lead.
  • Durable 5/16" (8mm) diameter galvanized steel wire rope.
  • Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.


Descriptions:

A long-time best seller, the compact, low-profile XD9 offers up a 10,500 lb. capacity, fast no-load retrieval speeds, and classic looks. Proven for years, these are among the most trusted winches in our lineup.

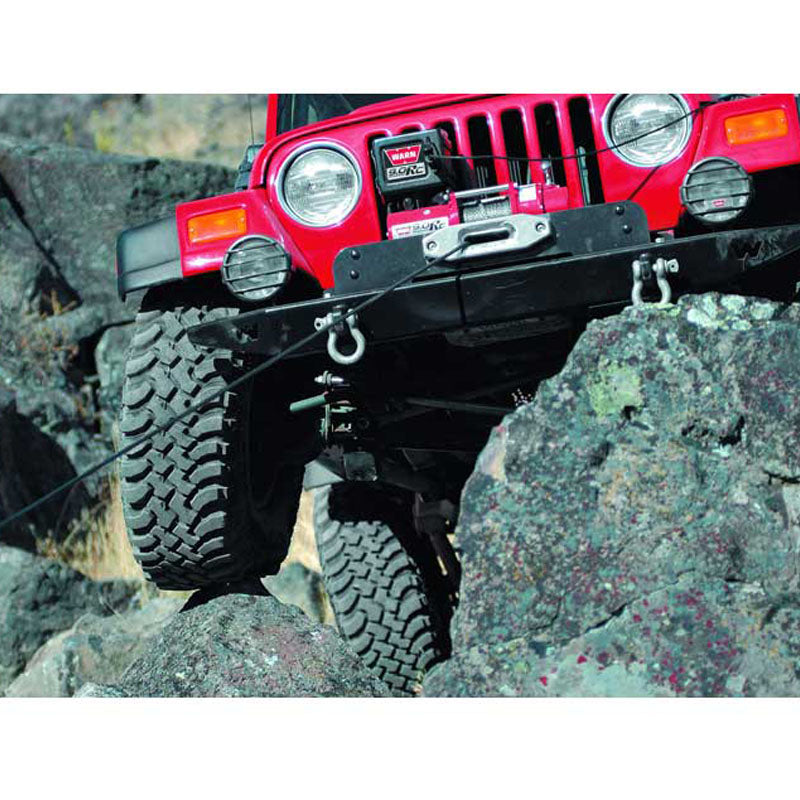

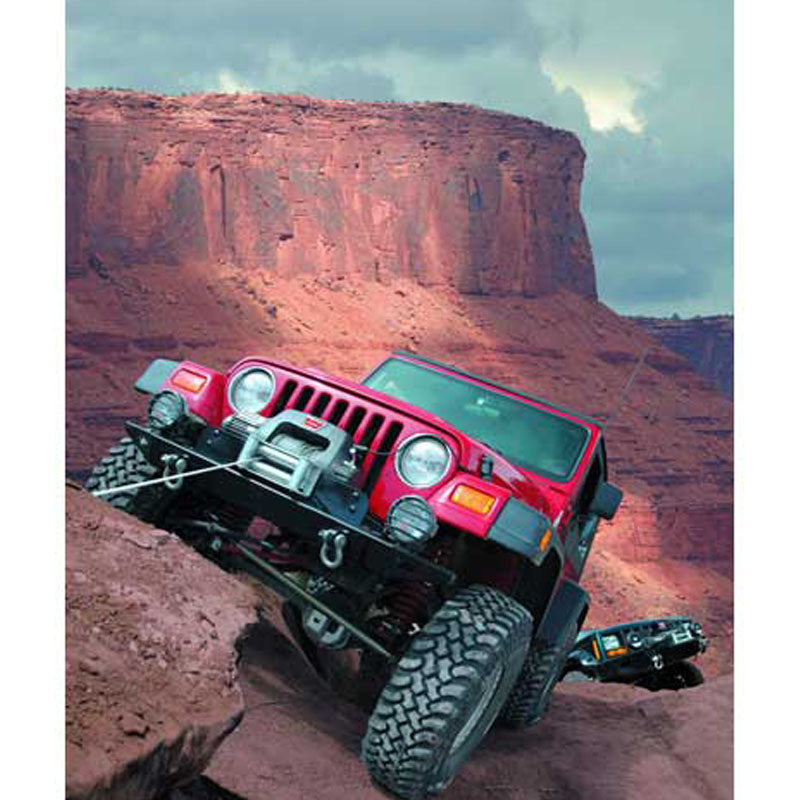

Be triumphant on the trails with Warn XD9000 winches. These long-time classics offer the fast and reliable power that you need in real trail conditions. Their compact bodies and separate control packs work effectively in very tight spaces and their 4.6 hp Series Wound motor and 3-stage planetary gearing mean that the line speed and torque are optimum. Mount the pulling capacity and efficiency of Warn XD9000 winches to rule the rugged terrain.
