Length: 48 in.

Width: 40 in.

Height: 14 in.

Weight: 303 lbs

Suspension Type: Lift Kit

Lift Height: 6 in

Primary Front Lift Component: Strut extension

Primary Rear Lift Component: Leaf spring block

Rear Shock Type: Gas-charged monotube

Installation Instructions: 44-5560-IM-AB.pdf

ReadyLift Suspension Lift Kit 44-5660

Features:

• Toyota Tacoma 2WD/4WD trucks
• SR, SR5, TRD Sport, TRD Off-Road & Limited models - Not use on TRD Pro, TX Baja or XSP-X models
• Provides a true 6 inches of front lift
• Complete front/rear lift kit system

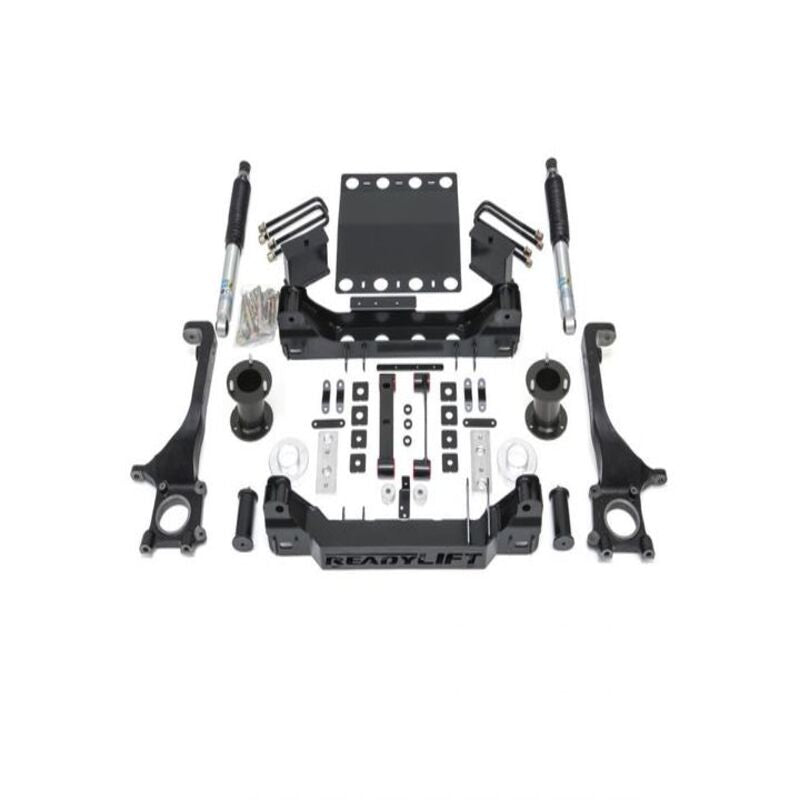

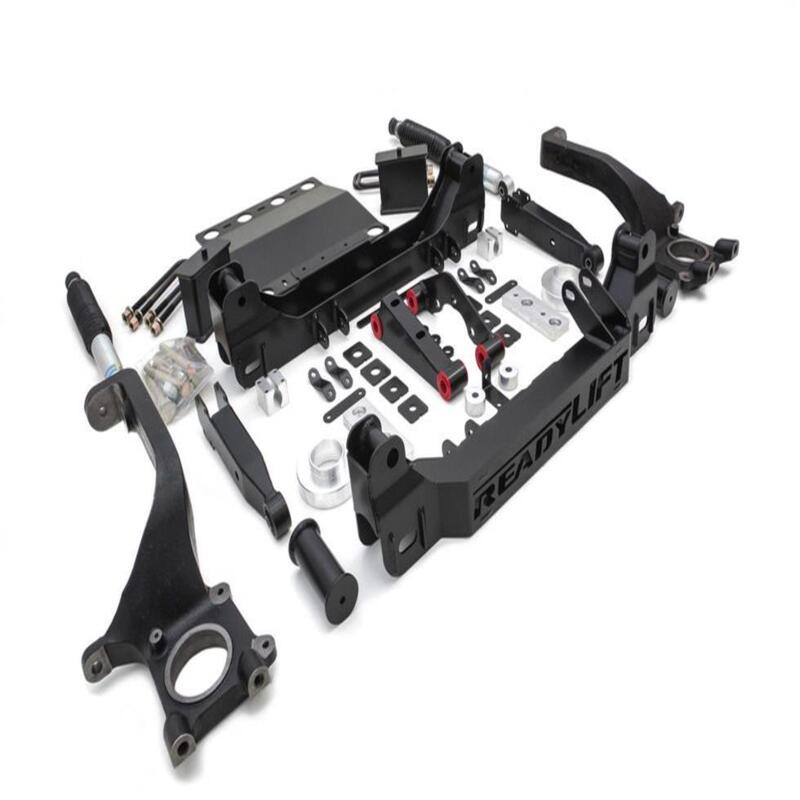

• Kit includes: front & rear laser cut CNC machined cross members
• Top mount strut extensions
• Cast iron lift knuckles
• Bump stop extensions
• Sway bar drop spacers
• Differential drop assembly
• Brake line brackets
• 4 inch tall rear lift blocks with longer u-bolts
• Heavy-duty skid plate
• Bilstein 5100 series rear shocks
• Allows up to 35" tall off-road tires on 9" wide wheels with +12, 0 or -18 offsets. Minimum 18" wheel diameter required
• Increased front spring rates to improve stopping and turning performance
• Made in USA
• California Residents: WARNING

Descriptions:

We are excited to announce that we have finally completed the development of two all-new 6" Big Lift Kits for 2016-2023 Tacoma trucks and are ready to provide you with a superior choice for increasing the lift height of these mid-size Toyota trucks. Using the same drop bracket style engineering that you appreciate in our Tundra lift kits, these two new Tacoma 6" big lift kits are power packed with great features that improve installation effort while providing a great ride and handling with the ability to run up to a 35" tall off-road tire!

The key to this kit's success is our popular proprietary lower strut lift bracket assembly that utilizes OEM pivot bushings. Other great features that drastically improve handling and overall driving mannerisms are the precision-engineered cast iron lift knuckles that provide perfect alignment geometry throughout the suspension cycle and the retention of the factory sway bar mounting locations. You even get to keep the factory skid plate and gravel guard! This kit includes heavy-duty laser-cut, CNC-bent steel cross members to properly lower the front differential and maintain the structural integrity of the frame. For the rear we include 5-inch tall fabricated steel lift blocks teamed up with a pair o performance-tuned Bilstein 5100-series shocks.

Our engineers checked all of the boxes to make this one amazing big lift kit for Tacoma trucks! Over 6 months of real-time daily road testing provided exceptional data that confirms - this really is one great Tacoma lift kit allowing Tacoma owners to run up to a 35x12. 50 tires on a 9" wide wheel with either +12, 0 or -18 offsets! Finally, newer Toyota Tacoma trucks are often equipped with numerous safety highlights like electronic stability control, airbags, and various other high-tech features under the TSS-PCS umbrella.  ReadyLIFT has baseline tested a ‘factory’ 2018 MY Tacoma and also tested the same vehicle upgraded with our all-new 6” Big Lift Kit with larger aftermarket wheels and tires.  Results without and with the suspension upgrades installed on our test vehicle show definitively that the active and passive systems recognized the operating conditions and environmental factors (lane location, proximity of other vehicles, traffic at a distance, pre-collision objects in and around the vehicle path) and took appropriate corrective actions (including alerts and intervention) as intended by the factory safety system settings.
