Fabtech Motorsports K7080DL 2010-2023 Toyota 4Runner 3in Uniball UCA System with Front Dirt Logic 2.5" Resi Coilovers and Rear Dirt Logic 2.25" Resi Shocks

Fabtech Motorsports SKU: K7080DL
Sale price


Regular price $5,852.42
  • Front Lift Amount (IN): 3 Inch
  • Rear Lift Amount (IN): 3 Inch
  • Maximum Tire Size: 33 x 12.50
  • Minimum Wheel Diameter: 17

Front Lift Amount (IN): 3 Inch

Rear Lift Amount (IN): 3 Inch

Front Lift Type: Coil Over Shock Absorber

Rear Lift Type: Coil Spring

Maximum Tire Size: 33 x 12.50

Shock Type: Hydraulic/ Nitrogen Gas Charged

Wheel Backspacing (IN): 4.625

Minimum Wheel Diameter: 17

Wheel Offset (MM): 3.175

Shocks: With Shocks In Kit

Color: Black Components/ Silver Shock Absorbers

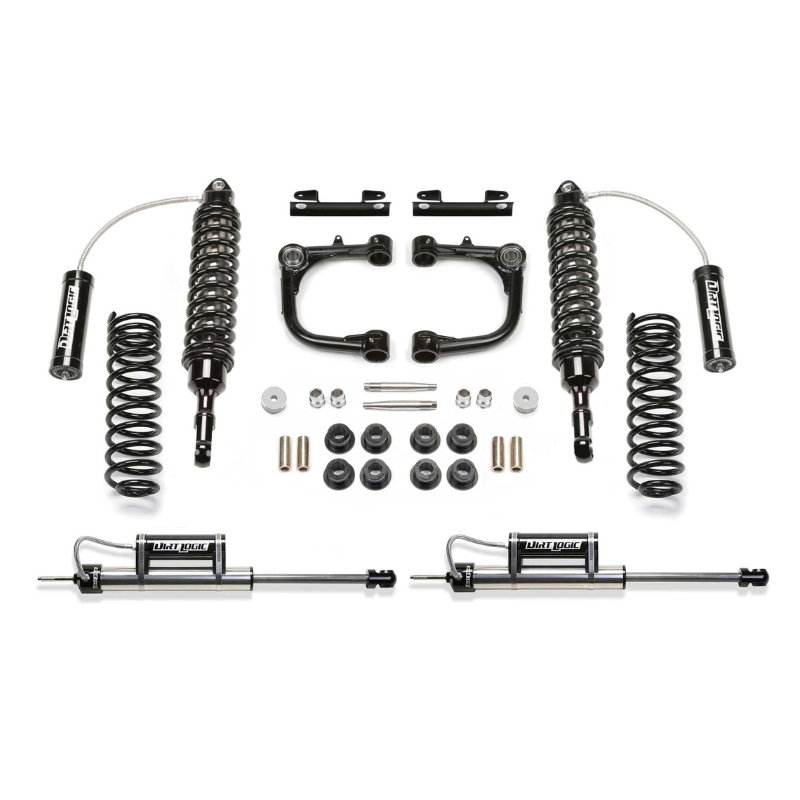

Fabtech Motorsports Lift Kit K7080DL

Obtain increased wheel travel with a mild lift height with this heavy-duty Upper Control Arm system. The tubular Upper Control Arms feature 1-1/4 Inch Outer Diameter, 0.120 Inch wall thick chromoly tube construction with 1 Inch diameter Stainless Steel Uniballs that attach to the factory spindle without drilling. The replacement UCA's have been designed to work in conjunction with Fabtech's Stainless Steel Dirt Logic 2.5 Coilover shocks providing 10 Inch of wheel travel for a complete front suspension system upgrade. The Dirt Logic 2.5 Coilovers feature cold wound coil springs for a smooth ride with the ability to tackle aggressive offroad terrain. Fabtech rear Dual Rate coil springs replace the factory springs with a two stage design. In the first stage they provide a supple ride quality at lower speeds with the ability to allow for more wheel travel when traversing large offroad obstacles. The second stage provides increased spring rate for load carrying capacity of gear while providing a superior ride at higher speeds. The rear Dirt Logic 2.25 shocks will also provide 9 Inch of travel due the remote reservoir allowing for the full stroke of the shock. This system is perfect for those that want increased suspension performance with a low lift height. A great choice for daily drivers that overland and hit the trails on weekends.

Features & Benefits

  • Arms Eliminate The Upper Ball Joint With Super Strong 1 Inch ID Stainless American Uniball
  • Full Front Suspension System Upgrade
  • Thick and detailed construction
  • Made for a more satisfying Ride Experience
  • Chromoly Tubing Reduces Flex Found In Stock Arms For More Positive Road Feel
  • 17-4 Stainless Steel Heat Treated Uniball Pin Fits Into Factory Ball Joint Taper Without Modification To The Spindle
  • Dual Rate Rear Coil Springs Provide Increased Flexibity And Smooth Ride
  • Adjustable lower rear link arms for increased strength and articulation
  • Great System For The Daily Driver That Requires Increased Offroad Performance
  • Dirt Logic Shocks
  • Allows for wheel travel of 1" Front & 9" Rear
  • Stainless Steel Body
  • 7/8" NitroSteel Piston rod
  • Limited Lifetime Warranty

Tires and Wheels

  • Use 35/12.50R17 tires w/ 17×9 wheels w/ 4 1/2″ BS w/ minor trimming
  • Use 35/12.50R18 tires w/ 18×9 wheels w/ 4 1/2″ BS w/ minor trimming
  • Use 35/12.50R20 tires w/ 20×9 wheels w/ 4 1/2″ BS w/ minor trimming
