Front Lift Amount (IN): 4 Inch
Rear Lift Amount (IN): 4 Inch
Front Lift Type: Upper Control Arms
Rear Lift Type: Control Arm
Maximum Tire Size: 35 x 12.50
Shock Type: Nitrogen Gas Charged
Wheel Backspacing (IN): 4.75
Minimum Wheel Diameter: 17
Shocks: With Shocks In Kit
Color: Black Components

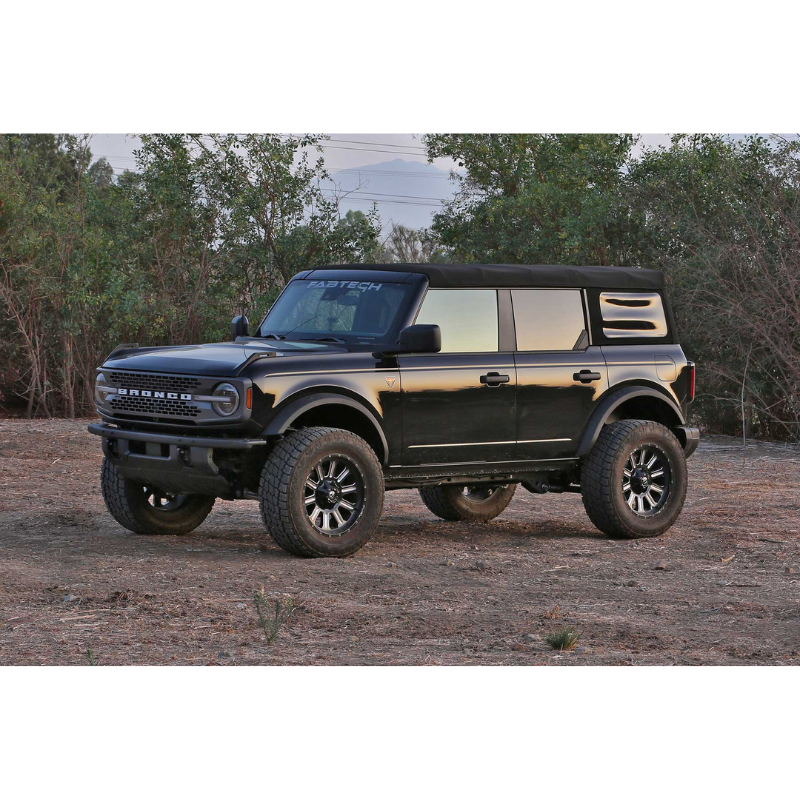

Fabtech Motorsports Lift Kit K2385DL
Fabtech's high quality Uniball UCA lift kit for the Bronco offers increased front suspension travel for enhanced offroad capabilities with clearance to run 35 Inch tall tires. The stance of the vehicle with this kit will become more level front to rear for an aggressive look. The factory Bronco upper control arms are replaced with Fabtech's Uniball Upper Control Arms that provide additional wheel travel with an extra degree of caster compared to stock arms. The increased caster helps to balance steering effort with oversized tires. The Fabtech upper control arms are constructed of the finest material with 0.120 Inch wall 1-1/4 Inch Outer Diameter 4130 Chromoly steel tubing. High quality 1 Inch FK Stainless PTFE lined Uniball bearings are utilized in place of the small factory ball joints and allow for increased travel without bind. These super stout Bronco upper control arms are designed for longevity in rugged offroad conditions while providing a more positive on road feel. The Fabtech upper control arms have been designed to work in conjunction with the Dirt Logic 2.5 Coilover shocks to provide additional front wheel travel. The rear suspension receives Adjustable Lower Link Arms with Fabtech's lifetime 5 Ton joints ®. The lower links are 0.313 thick wall tubing that are guaranteed never to bend. Dirt Logic 2.5 Coilovers are utilized for a balanced ride front to rear. This system is perfect for those that want increased suspension performance with a low lift height. A great choice for daily drivers that want a clean look with the ability to hit the trails on weekends.
Features & Benefits
- Dirt Logic 2.5 Coilovers provide incredible dampening capacity for aggressive off-road driving
- Allows use of up to 35 inch tires
- Direct Fit upgrade
- Quality ConstructionsÂ
- Premium materialsÂ
- Arms Eliminate The Upper Ball Joint With Super Strong 1 Inch ID Stainless American Uniball
- Chromoly Tubing Reduces Flex Found In Stock Arms For More Positive Road Feel
- 17-4 Stainless Steel Heat Treated Uniball Pin Fits Into Factory Ball Joint Taper Without Modification To The Spindle
- Adjustable Lower Rear Link Arms For Increased Strength And Articulation
- Front And Rear Dirt Logic 2.5 Coilover Shocks
- Great System For The Daily Driver That Requires Increased Offroad Performance
- Limited Lifetime Warranty
Installation Instructions:Â FT22336, FT22338, FT82074, FT82075
