Bulb Type: LED

Beam Type: Driving And Spot Beam Combo

Shape: Rectangular

Diameter: Not Applicable

Height/Width: 4.43 Inch Height X 39.16 Inch Width

Depth: 2.8 Inch

Light Color: Clear

Wattage: 156 Watt

Mounting Style: Bumper Mount

Quantity: Set Of 6

Ampere Rating At 12 Volts: 12 Amp

Ampere Rating At 24 Volts: 6.5 Amp

Lumens: 18,900 Lumens

Bulb Specifications: 24 LED Bulbs

Lens Material: Polycarbonate

Housing Color: Black

Housing Material: Cast Aluminum

Bezel: Billet Machined Aluminum

Hardware & Bracket Material: Stainless Steel

Includes: With 6 XL Sport Rock Guards/Upfitter Wiring Harness/Bracket

Estimated Install Time (Hours): 1.5

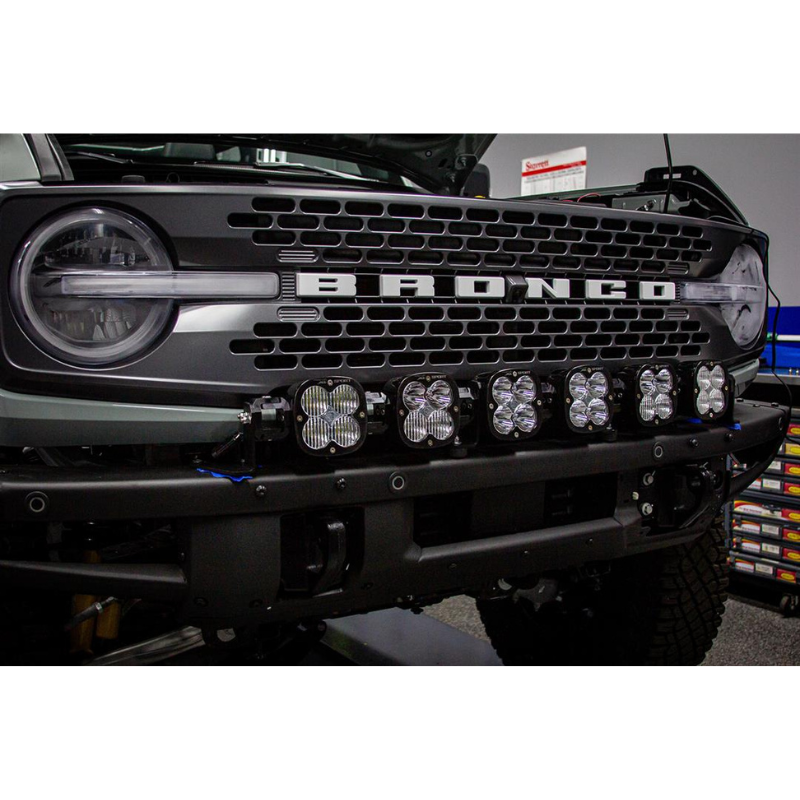

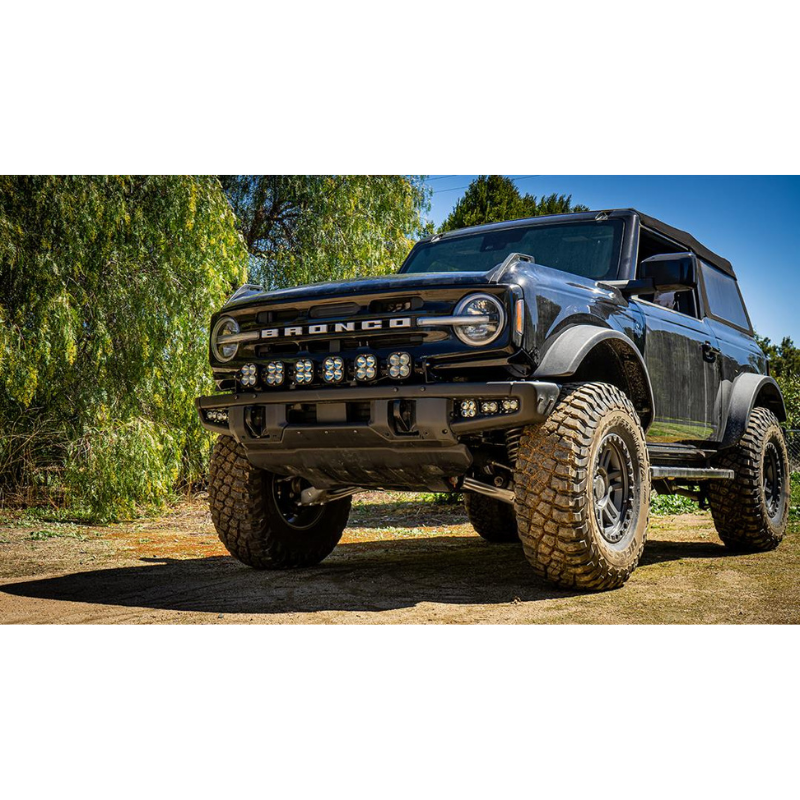

Baja Design Bumper Light Kit 447768UP

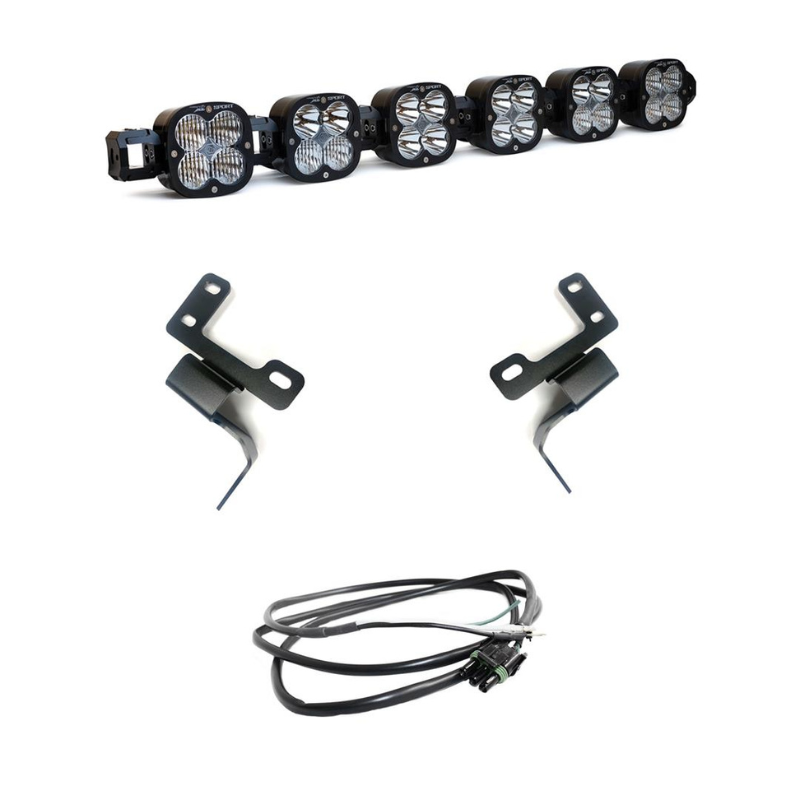

Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This kit includes 6 XL Sports, Links, vehicle specific mounting brackets, wiring harness and rock guards. A pre-load support bracket is features to ensure stiffness in the most extreme terrain.

Features & Benefits

• MoistureBlock ™ - Waterproof, Rain Proof, Submersible
• UService ® – Replaceable Lenses And Optics
• IP69K: Waterproof
• Built-In Overvoltage Protection
• Exceeds MIL-STD810G
• CopperDrive® – Only LED Driven At 100%
• 5000K Daylight – Less Driver Fatigue, Natural Color
• Limited Lifetime Warranty

Patterns:

Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Installation Instructions
