Winch Rating: 10000 Pound

Recommended Use: Vehicle Recovery

Operation Type: Electric

Mount Type: Fixed Mount

Voltage: 12 Volt

Free Spooling: Yes

Line Length (FT): 100 Feet

Clutch (freespooling): Rotating Ring Gear

Line Material: Synthetic

Remote Type: Wired

Universality: Fully Universal

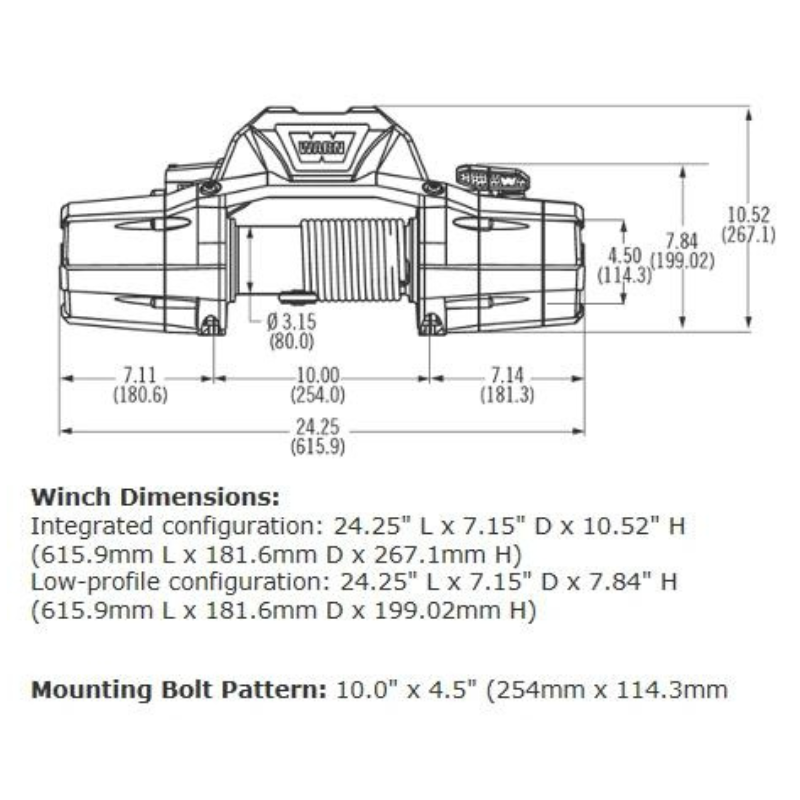

Mounting Pattern Size: 10 Inch Length X 4-1/2 Inch Width

Brake Type: Automatic Cone

Max Amp Draw: 409 Amp Draw At 10000 Pound

Gear Reduction Ratio: 261:1

Includes Mounting Hardware: No

Thermal Shutoff: No

Color: Black

Fairlead Type: Hawse

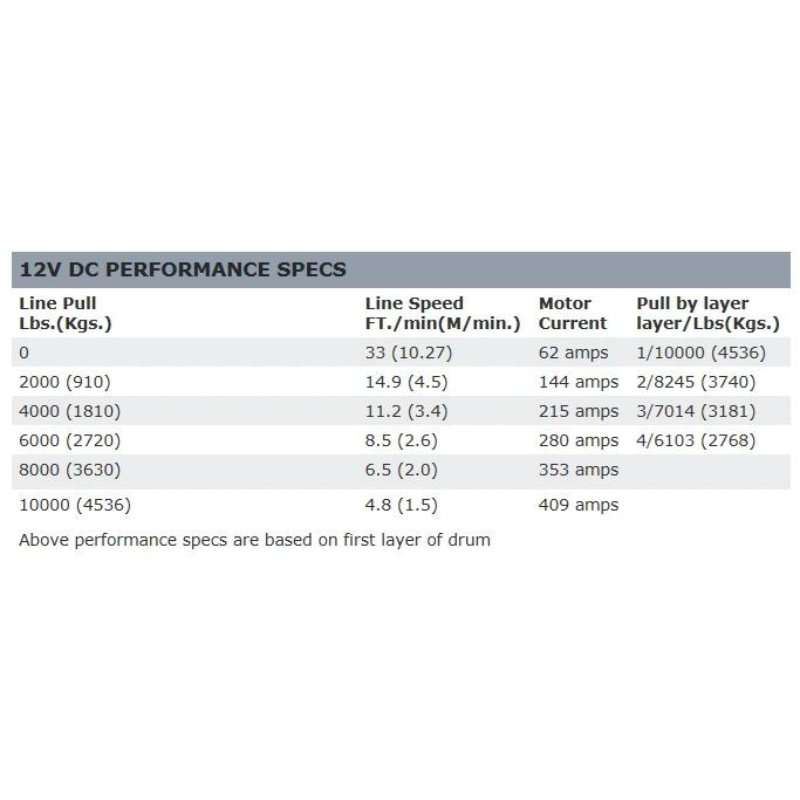

Line Speed At Max Pull: 4.8 Feet Per Minute At 10000 Pound

Electrical Control Type: Contactors

Motor Type: Series Wound

Drive Gear Type: Planetary

Line Diameter (IN): 3/8 Inch

Mounting Hole Quantity: 4

Drum Material: Aluminum

Estimated Install Time (Hours): 2

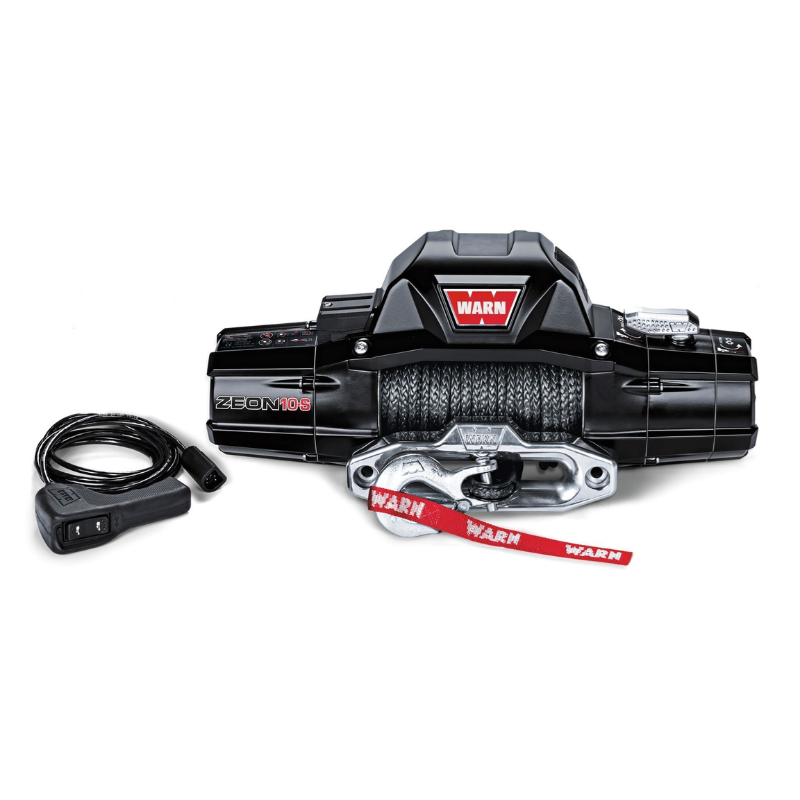

Warn Recovery Winch 89611

 Choose your way to conquer the terrain. The ZEON 10-S is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck-busting sealing keeps out everything but the good times. Add a hyper-durable cast-aluminum housing, satin-black finish, and 10,000 Pound single-line pulling capacity and, well, you've got a workhorse unit you can trust for years to come.

Features & Benefits

• 10,000 Pound (4536 Kilogram) Single-Line Pulling Capacity
• Includes 100 Foot Of 3/8 Inch Warn Spydura Synthetic Rope, Which Includes A Temperature-Resistant Sleeve On The First Layer, A Ballistic Nylon Sliding Sleeve And A Polished Aluminum Hawse Fairlead
• Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
• New-Design Planetary Gear Train And Series-Wound Motor Deliver Fast, Quiet, And Reliable Pulling Power
• Satin-Black Powder-Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion. Improved Winch Sealing To Keep The Elements Out
• Improved winch sealing to keep the elements out; IP68 rated
• Unique exterior styling and symmetrical design give this winch a look that is advanced, capable, and strong
• Large Diameter Winch Drum Reduces Rope Wear, Is Light Weight, And Has An Integrated Rope Anchor For Easy Rope Installation
• Limited 2 Year Warranty
