Winch Rating: 8000 Pound

Recommended Use: Vehicle Recovery

Operation Type: Electric

Mount Type: Fixed Mount

Voltage: 12 Volt

Free Spooling: Yes

Line Length (FT): 100 Feet

Line Material: Synthetic

Remote Type: Wired

Universality: Fully Universal

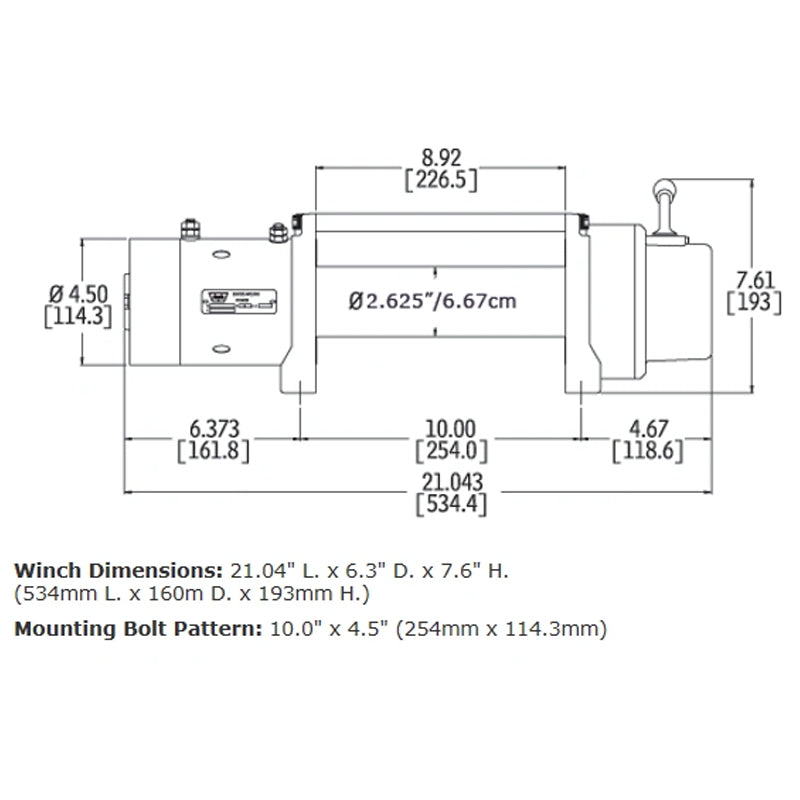

Mounting Pattern Size: 10 Inch Length X 4-1/2 Inch Width

Brake Type: Automatic Cone

Max Amp Draw: 435 Amp Draw At 8000 Pound

Gear Reduction Ratio: 261:1

Includes Mounting Hardware: No

Thermal Shutoff: No

Color: Gray

Motor Horsepower: 4.8 Horsepower

Fairlead Type: Hawse

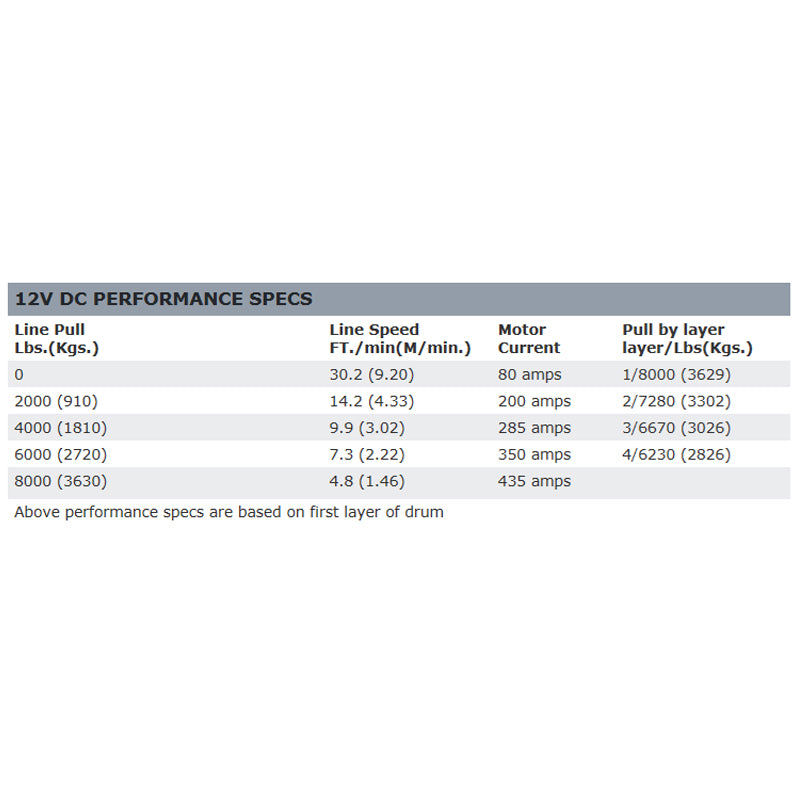

Line Speed At Max Pull: 4.8 Feet Per Minute At 8000 Pound

Electrical Control Type: Contactors

Motor Type: Series Wound

Drive Gear Type: Planetary

Line Diameter (IN): 3/8 Inch

Mounting Hole Quantity: 4

Estimated Install Time (Hours): 2

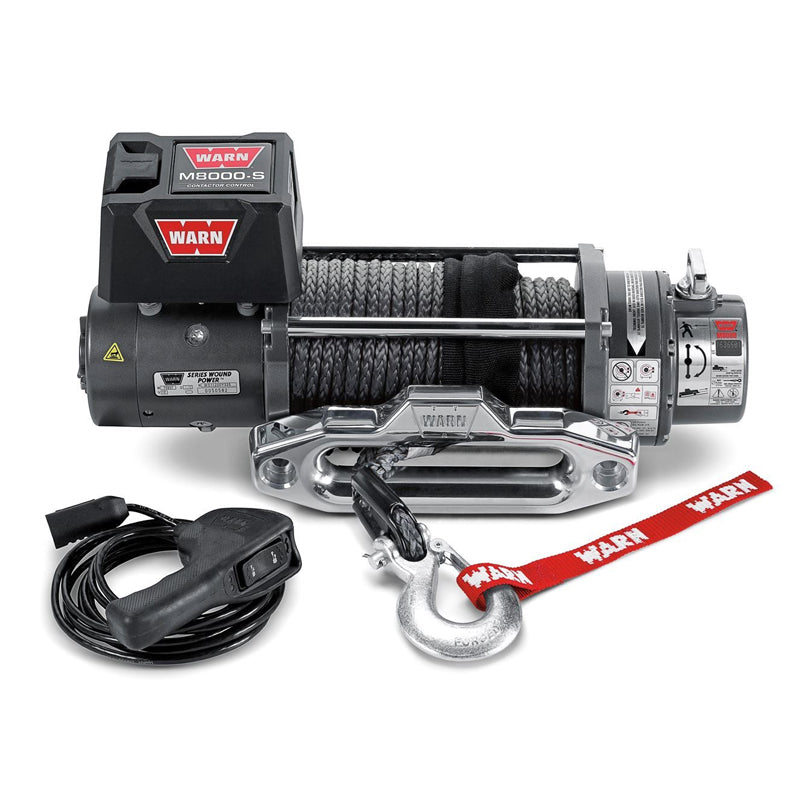

Warn Recovery Winch 87800

Contactor equipped, thermometric winch is the newest addition to the Warn Ultimate Performance winch lineup. A massive protective structure combined with sophisticated operator feedback delivers fast line speeds, and long duty cycles.

The MB Winch has been trusted by off-roaders for over twenty  years. This 8,000 lbs capacity which offers outstanding reliability and value. Its low-profile design allows for a variety of mounting options, making it perfect for most trucks, Jeeps and SUVS.

Premium Series which that delivers classic designs, proven performance, and legendary WARN reliability. Contractor control box and hand-held, corded remote control. Low-profile design and separate  control box allows for a wide range of mounting options. Exclusive brake designs provides superior control while winching. Durable 3-stage planetary geartrain for smooth, reliable, operation. Series-wound, high-speed motor provides fast line and strong pulls. CHP-Resistant powder-coated finish.

Features & Benefits

• Available With WARN Spydura ™ Synthetic Rope With Matte Aluminum Hawse Fairlead
• Premium Series Winch That Delivers Classic Design, Proven Performance, And Legendary WARN Reliability
• Contactor Control Box And Hand-Held, Corded Remote Control
• Low-Profile Design And Separate Control Box Allows For A Wide Range Of Mounting Options
• Exclusive Brake Design Provides Superior Control While Winching
• Durable 3-Stage Planetary Gear Train For Smooth, Reliable, Operation
• Series-Wound, High-Speed Motor Provides Fast Line Speed And Strong Pulls
• Chip-Resistant Powder-Coated Finish
• Limited Lifetime Gear Train And Limited 7 Year Electrical Warranty

Installation Instructions
California Residents: Prop 65 WARNING
