Winch Rating: 8000 Pound

Recommended Use: Vehicle Recovery

Operation Type: Electric

Mount Type: Fixed Mount

Voltage: 12 Volt

Free Spooling: Yes

Line Length (FT): 94 Feet

Line Material: Steel

Remote Type: Wired

Universality: Fully Universal

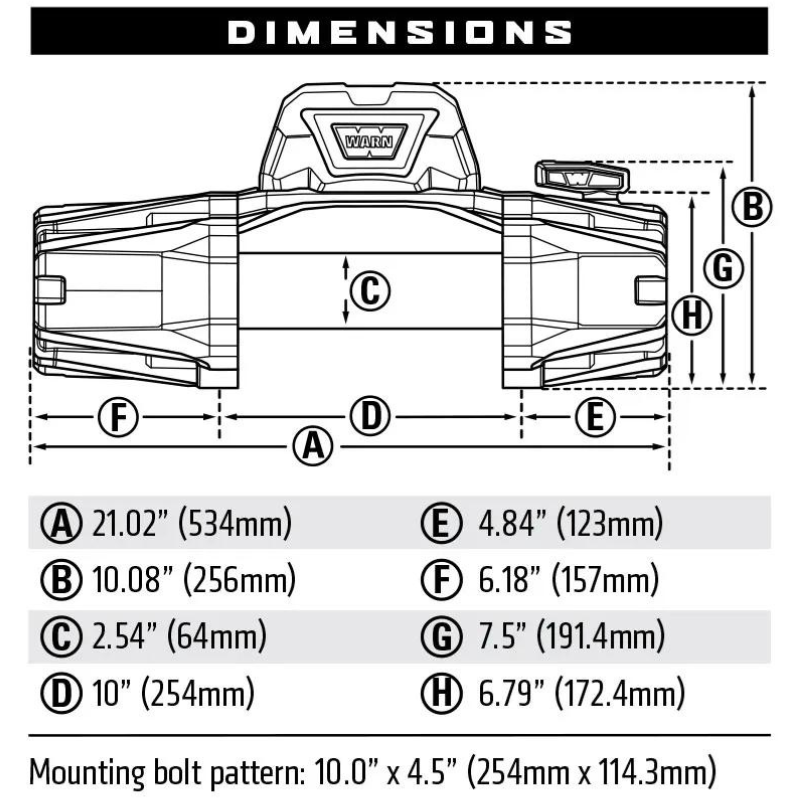

Mounting Pattern Size: 10 Inch Length X 4-1/2 Inch Width

Brake Type: Spring Applied Disc

Max Amp Draw: 298 Amp Draw At 8000 Pound

Gear Reduction Ratio: 218:1

Includes Mounting Hardware: Yes

Thermal Shutoff: No

Color: Black

Fairlead Type: Hawse

Line Speed At Max Pull: 6 Feet Per Minute At 8000 Pound

Electrical Control Type: Contactors

Motor Type: Series Wound

Drive Gear Type: Planetary

Line Diameter (IN): 5/16 Inch

Mounting Hole Quantity: 4

Drum Material: Steel

Estimated Install Time (Hours): 2

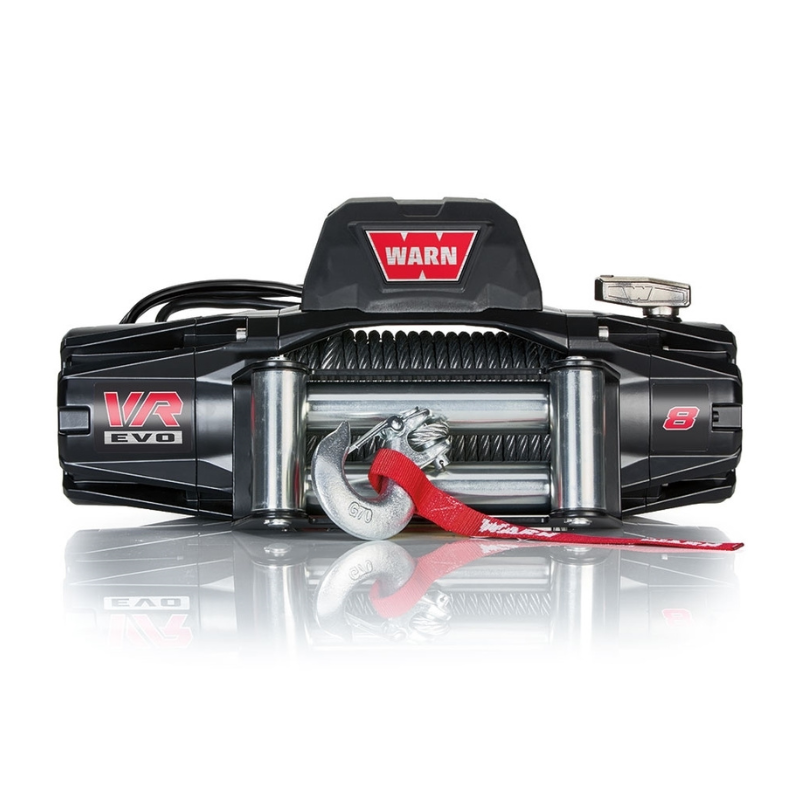

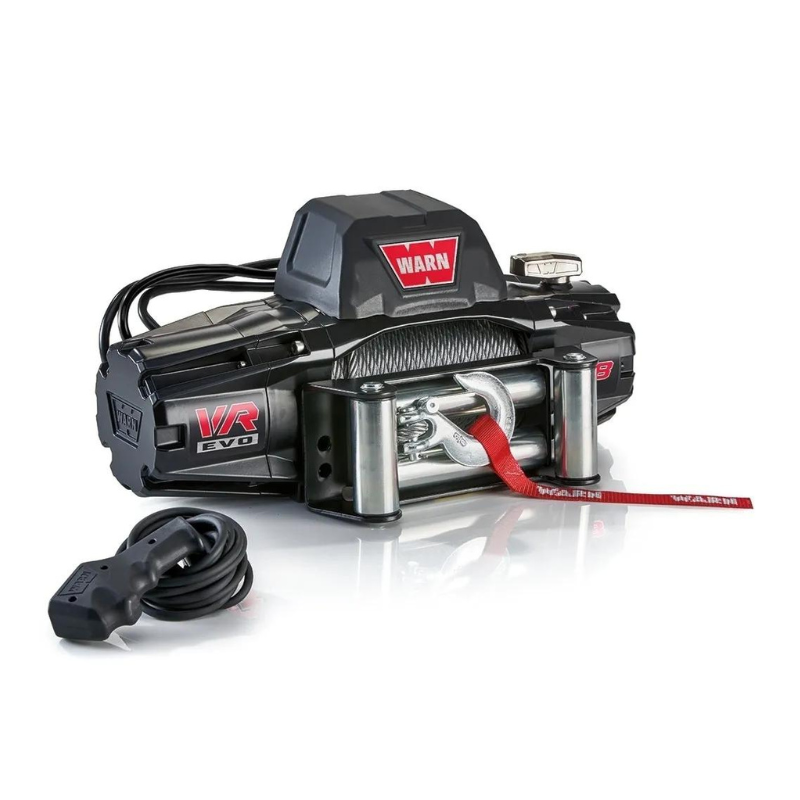

Warn Recovery Winch 103250

The new WARN offers enhanced styling, upgraded performance, and legendary WARN reliability that you can trust. The new convertible control pack has a tactical look and allows upright or low-profile mounting configurations. A waterproof Albright® contactor provides the most reliable winch control available. The one-piece tie plate replaces multiple tie bars for increased strength, and a best-in-class cone brake holds the full-rated load. Also offers the fastest no-load line speed in the VR family.

Features & Benefits

• Standard duty winch with a steel cable and an 8, 000 lb. capacity; Ideal for 2-door jeeps and lighter SUVs for everyday pulls
• Black Tactical Look Puts You At The Head Of The Off-Road Pack
• Waterproof Albright® Contactor Control For The Ultimate In Reliability
• One-Piece Tie Plate Replaces Tie Rods For Added Strength And Rigidity
• Convertible Control Pack Allows Upright Or Low-Profile Winch Mounting
• Durable Steel Rope
• Durable, one-piece cast-aluminum tie-plate for added strength and durability
• Control packs can be relocated for low-profile installations
• Powerful, Efficient Series-Wound Motor and Planetary Gear Train Deliver Faster Line Speed Under Load, with lower amp draw
• Limited 7 Year Warranty

Note: This product requires a compatible bumper, or mounting plate to be properly  mounted to your vehicle.
