Tire Mount Location: Tailgate Mount

Maximum Tire Diameter (IN): 40 Inch

Finish: Powder Coated

Color: Black

Material: Aluminum

Estimated Install Time (Hours): 1

TeraFlex Spare Tire Carrier 4838920

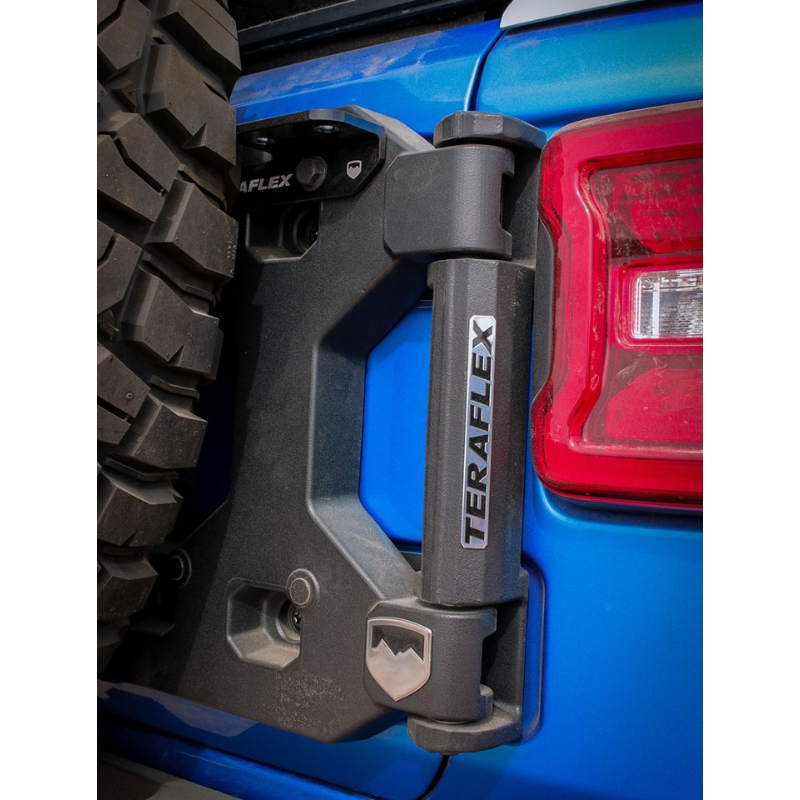

Designed to accommodate up to a 40 Inch tire, the TeraFlex JL, Alpha HD Hinged Spare Tire Carrier and Alpha HD Adjustable Spare Tire Mount will secure your full-size spare tire over the most extreme trails and rugged terrain. It also provides easy access to the rear cargo area in one smooth action. Alpha HD Hinged Spare Tire Carrier: Using the factory tailgate hinge mounting points spreads the load of the spare tire over a larger area for maximum strength and durability. Internal gussets and bracing in the stock JL body supports the Alpha HD Hinged Spare Tire Carrier and oversized tire, which eliminates all stress from the tailgate. Compared to the JK piece, the new JL, Alpha HD Hinged Spare Tire Carrier spans nearly the width of the tailgate for better weight distribution. Additionally, the updated design features a one-piece, forged steel hinge that ties the top and bottom factory hinge locations together as well as additional vertical braces for increased strength. The Alpha HD Hinged Spare Tire Carrier also provides additional mounting points for off-road accessories such as a recovery jack and fluid containers. The adjustable Tire Carrier is constructed from strong and lightweight 6061-T6 extruded aluminum. Alpha HD Adjustable Spare Tire Mount, Although the Alpha HD Adjustable Spare Tire Mount can be used alone, it has been designed to be installed in conjunction with the Alpha HD Hinged Spare Tire Carrier. The Tire Mount can support the additional weight of a full-size spare tire by securely mounting the tire to the Tire Carrier and tailgate.

Features & Benefits

• Heavy-Duty Forged Steel Brackets And Mid-Carbon Hardened Steel 5/8 Inch Hinge Pins
• Hinged Carrier Constructed From Strong And Lightweight A356.2 Aluminum
• Adjuster Made From Strong And Lightweight 6061-T6 Extruded Aluminum
• Innovative And Unique Design With Easy Adjustability
• Maintains Single-Handed Entry To The Rear Cargo Area
• Threaded Mounting Holes For Mounting Accessories Such As Hi-Lift And CB Antennae Brackets
• FEA Validation, ASTM, And SAE Testing Procedures
• OEM Quality UV Resistant Powder Coat Finish With 3,000-Hour Accelerated Weather Testing
• Spare Tire Mount Is Formed And Welded From CNC Laser Cut Steel For Superior Strength
• Limited 1 Year Warranty

Alpha HD Hinged Spare Tire Carrier Kit

• Eliminates tailgate stress and rattles
• Factory form fitting geometry and finish for an OEM appearance
• Threaded mounting holes for mounting accessories such as Hi-Lift and CB antennae brackets
• Hinged carrier constructed from strong and lightweight A356.2 Aluminum
• Heavy-duty forged steel brackets and mid-carbon hardened steel 5/8 inche hinge pins
• 14000-cycle severe duty slam testing

Alpha HD Adjustable Spare Tire Mount Kit:

• Easy fore/aft and height adjustments
• Relocates 3rd brake light from behind tailgate to behind spare tire
• Includes new quick-release 3rd Brake Light Mount
• Includes new hard-anodized billet aluminum Rearview Camera Mount
• Spare Tire Mount is formed and welded from CNC laser cut steel for superior strength
• Adjuster made from strong and lightweight 6061-T6 extruded aluminum

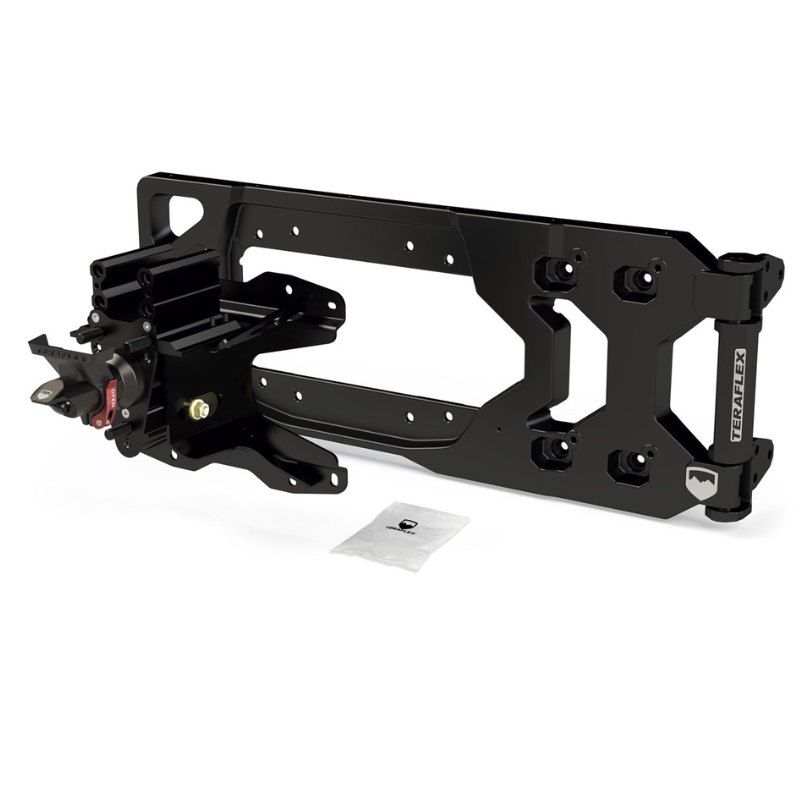

Includes:

• Alpha HD Hinged Spare Tire Carrier
• All necessary hardware

Fits:

• JL Wrangler (2-door)
• JL Wrangler Unlimited (4-door)

Specs:

• Max Tire: 40 inch (when used w/ Alpha HD Hinged Spare Tire Carrier)
• Max Tire: 35 inch (when used w/out tailgate reinforcement)
• Wheel Pattern: 5x5 inch

Notes:

• The factory tailgate can only support the weight of up to a 35 inch spare tire and wheel combo w/out reinforcement. The Alpha HD Hinged Spare Tire Carrier (Part Number 4838900 - Included) or other tailgate reinforcement and Alpha HD Adjustable Spare Tire Mount (Part Number 4838910 - Not Included) are required to support up to a 40 inch spare tire and wheel combo.
• A spare tire larger than 40 inch will interfere with the stock rear bumper.
• Tire size fitment and aftermarket bumper clearance varies by manufacturers; please confirm fitment before purchase.
• Requires Alpha HD Adjustable Spare Tire Mount (Part Number 4838910 - Not Included) and Alpha HD 8-Lug Spare Tire Mount Adapter Plate Kit (Part Number 4838930 - Not Included) to convert from 5x5 inch to 8x6.5 inch for 8-lug wheels.
