KC Hilites 366 2007-2018 Jeep Wrangler JK 50" C-Series C50 LED Light Bar System

KC Hilites SKU: 366
Sale price


Regular price $1,137.49
  • Bulb Type: LED
  • Beam Type: Combo Spot/Spread Beam
  • Light Color: Clear

Bulb Type: LED

Style: Straight

Length: 50 Inch

Beam Type: Combo Spot/Spread Beam

Number Of Rows: Double

Light Color: Clear

Housing Color: Black

Beam Angle (Deg): 12 Degree Spot/30 Degree Spread

Lumens: 27,000 Lumens

Wattage: 288 Watt

Voltage Rating: 9 To 32 Volt

Ampere Rating At 12 Volts: 25 Amp

Bulb Specifications: 96 Clear CREE LED Bulbs

Lens Material: Lexan

Housing Material: Aluminum

Mounting Style: Surface Mount

Connection Type: Plug And Play Wiring Harness

Includes: With Wiring Harness/Waterproof Connectors/Windshield Mount Bracket

Estimated Install Time (Hours): 1.5

KC Hilites LED Light Bar 366

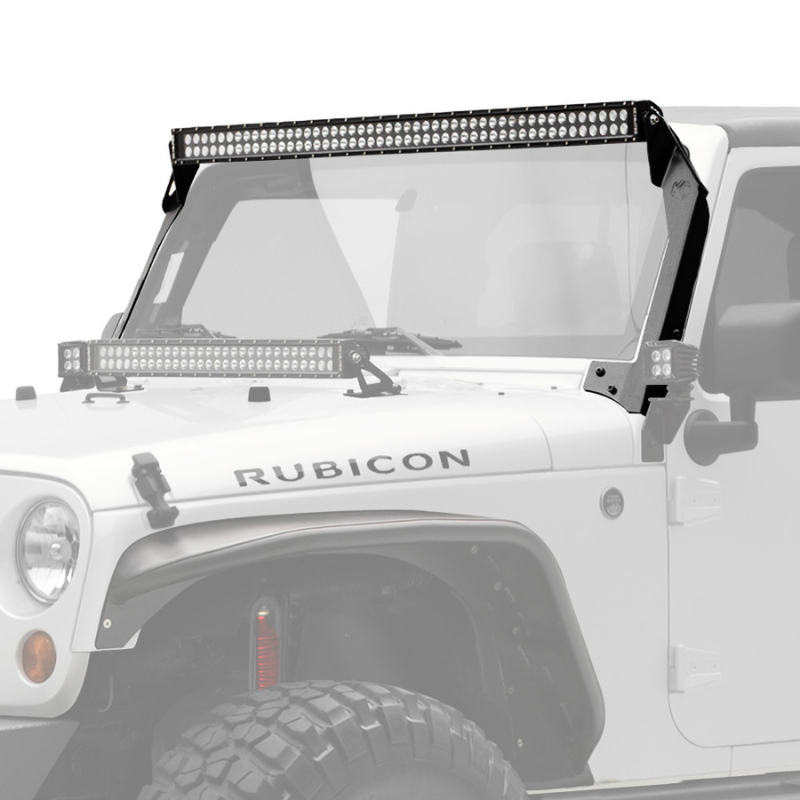

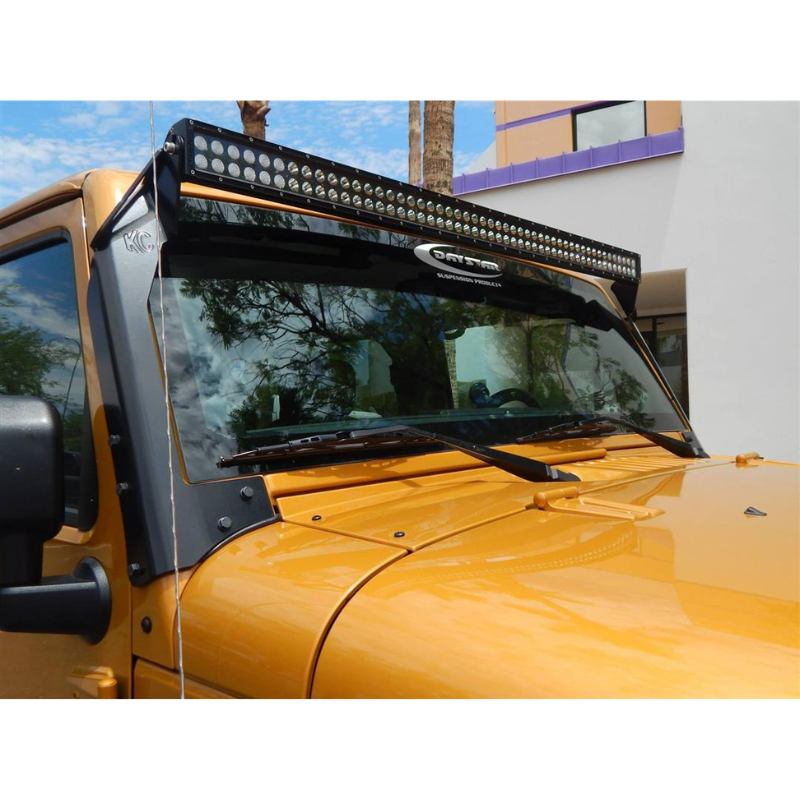

Off road race tested, the C-Series was designed to handle the harshest environments. Featuring a IP67 rated housing and GORE(R) Membranes, the C-Series is resistant to moisture and dust. This lighting kit comes with both the 50 in C Series LED Light Bar and the Overhead Mount Bracket to provide a turnkey lighting solution that's easily mounts to factory bolts on 07-16 Jeep JK vehicles. When it comes to total road coverage the C-Series LED light bar features a combo beam with perfectly angled 12 degree Spot 30 degree Spread reflectors, for maximum forward distance and increased peripheral illumination along road edges.

Features & Benefits

  • Extruded Aluminum Housing
  • On-Board Thermal Management
  • Protected Against RFI / EMC Interference
  • Complete Systems Include KC C-Series LED Light Bars, Mounting Brackets With All Necessary Hardware And Wiring Harness With Waterproof Connectors
  • Heavy Duty Steel Mounting Brackets Feature A Black Powder Coat Finish
  • Easily Mounts To Factory Bolt Locations
  • Limited 90 Day Warranty

    Installation Instructions
